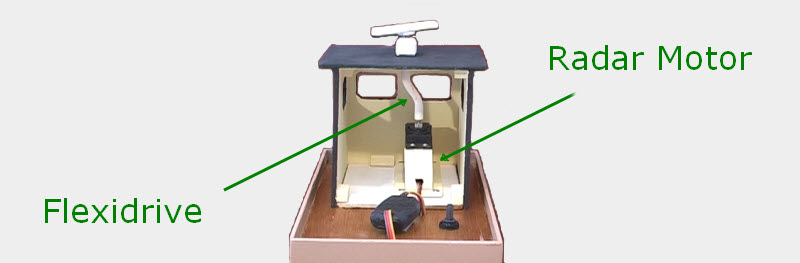

Radar Antenna





antenna with flexidrive and motor



28rpm Motor inc Drive10cm FlxiDrive

£12.95


Motor £9.35

UK & W Europe Post + packing £3.50


£2.45


FlxiDrive £0.50

UK & W Europe Post + packing £1.95

28rpm from 5v voltage regulator, clockwise, Analogue.
Size 40 x 20 x 38mm, Weight 55g.
Not Waterproof.
5.88mm spline.
Includes FlexiDrive and drum. Excludes BEC.
Silicon Tube
6mm O/D 2.5mm I/D
To suit shafts 3 to 6mm

All products are tested and must not be used outside their specification
Returns Policy
Contact SailServo before Returning goods. Returnee to pay postage
If in doubt contact us first
Postage overpayment for combined products will be refunded
Payment via “orders@leadshotballast.co.uk” PayPal account




radar motor studding

A length of studding is screwed into the servo spigot as the FlexiDrive tubing will not stay on the spigot. Sufficient tape is added to grip the tubing.



ModelSourceVoltageCurrentSpeed sec/10 TurnsRPM
Radar 1 6v 6.56 0.07 14 42
  4.8v 5.27 0.06 20 30
  5v BEC 4.99 0.06 21 28
Radar 2 6v 6.56 0.07 14 38
  4.8v 5.27 0.06 20 30
  5v BEC 4.99 0.06 21 28
